PP Plastic Formwork Board 15mm 18mm 20mm
product features
Hollow plastic construction formwork is a type of environmentally friendly and energy-efficient product made of pp plastic and macromolecule nanotechnology. Following wood formwork, composite steel formwork, bamboo-wood bonding formwork, and huge formwork made entirely of steel, this product is new. In addition to saving energy and protecting the environment, it may fully replace conventional steel formwork, wood formwork, and square wood. Additionally, it has a relatively cheap amortization cost.

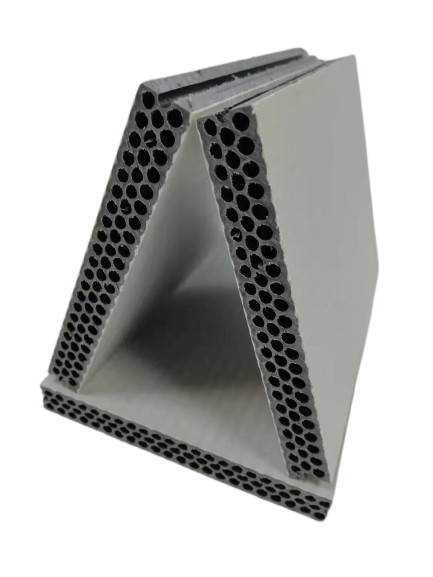

1. Round Hole Structural
Square Hole is updated to Round Hole. Structural Advantages make plastic formwork board stronger.
2. Waterproof
Hollow plastic formwork is weather resistance, rain and shine are no longer an issue.
3. Light Weight
It is lighter, easier to carry and release worker from heavy labor.Manual operation, no crane required reducing 20% labor cost than plywood.
4. Surface does not require maintenance
High pressure water jet flushes surface of the plastic template, but matal formwork requires surface maintenance.
5. High Workability
User-friendly, work well with saw,nail,drill,cut,etc. Compatible with other materials such wood,steel,aluminum,etc.
6. High Temperature Resistance
The material is polypropylene, the melting point can be as high as 167℃. PP vicat softening temperature of 150℃.
Product Parameters
Material: PP
Size: 1220x2440mm / 4’ x 8’
1830x915mm /3’ x 6’
1830x915mm /3’ x 6’
Thickness: 12-20mm
HS Code: 39259000
15mm and 18mm are normal thickness ,sells well.
15mm and 18mm are normal thickness ,sells well.
Product components
Previous normal square hole quality
Update new round hole quality:
| Size | Thinkness | Weight | |||
|---|---|---|---|---|---|
| 20HQ | 40HQ | ||||
| 915*1830MM | 14MM | 13±1KG | 1000 | 2000 | |
| 915*1830MM | 15MM | 14±1KG | 1000 | 2000 | |
| 915*1830MM | 16MM | 15±1KG | 1000 | 1900 | |
| 1220*2440MM | 15MM | 25±1KG | 500 | 1100 | |
| 1220*2440MM | 16MM | 26±1KG | 500 | 1000 | |
| 1220*2440MM | 18MM | 29±1KG | 400 | 950 | |
| 1220*2440MM | 20MM | 31±1KG | 400 | 850 |
Testing Results
Installation Details
Packing:
Advantages of plastic formwork
1. Over 60 reuses and a long service life.
2. Outstanding durability, high hardness, and no expansion or shrinking.
3. Easy to remove, lightweight, fully specified, safe for building and transit.
4. Non-layered, non-swelling, non-hygroscopic, waterproof, and size stable in water.
5. The concrete stripping is good, the surface is clean and smooth, and the mold is easily removed.
6. The acceptable temperature range is between -10°C and 70°C; at high temperatures, it should not distort (by 1-2 mm).
7. Because the template is easy to maintain, it reduces cleaning and maintenance costs.
8. Utilizes wood (bamboo), plywood, and additional materials.
9. It doesn't need to be lubricated, is simple to install and remove, and only the tapping formwork needs to be released.
2. Outstanding durability, high hardness, and no expansion or shrinking.
3. Easy to remove, lightweight, fully specified, safe for building and transit.
4. Non-layered, non-swelling, non-hygroscopic, waterproof, and size stable in water.
5. The concrete stripping is good, the surface is clean and smooth, and the mold is easily removed.
6. The acceptable temperature range is between -10°C and 70°C; at high temperatures, it should not distort (by 1-2 mm).
7. Because the template is easy to maintain, it reduces cleaning and maintenance costs.
8. Utilizes wood (bamboo), plywood, and additional materials.
9. It doesn't need to be lubricated, is simple to install and remove, and only the tapping formwork needs to be released.
Project in China
There are Plaza,hospital,Gym centre,Airport.
