Modular Formwork
Column Formwork
0102030405

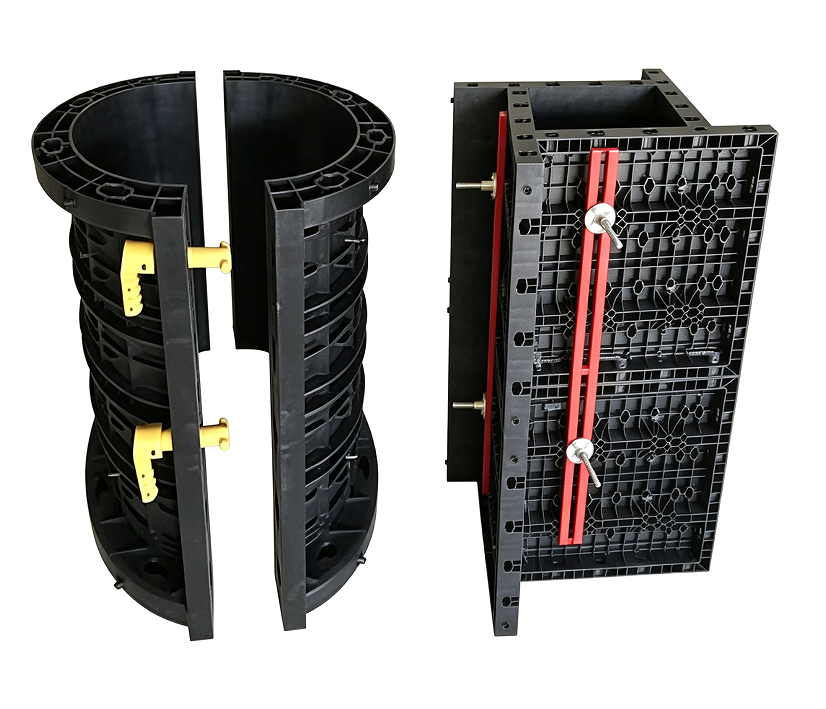

Column formwork
Product Parameters
1. Material: PP +Glassfiber/ABS
2. Weight: 15 KGS/SQM
3. Loading capacity: 60KN/SQM
Product Size

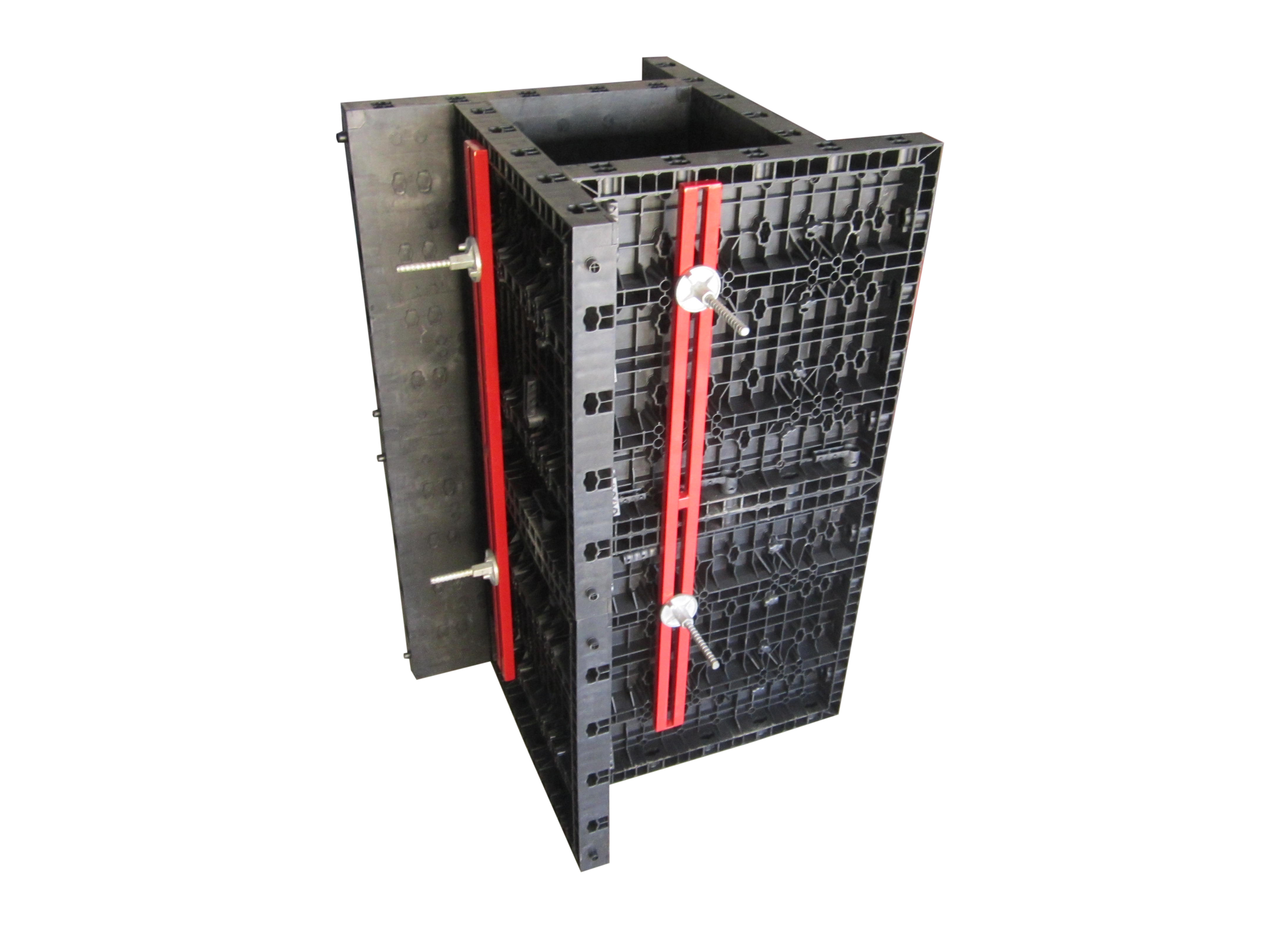

Size: plastic formwork for square column:
height: 750mm
width: 730mm
The panel 750*730mm is an adjustable panel for square column,it can make 45 sizes of columns.size is as following:
height: 750mm
width: 730mm
The panel 750*730mm is an adjustable panel for square column,it can make 45 sizes of columns.size is as following:
Dimension (cm)
| 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
|---|---|---|---|---|---|---|---|---|
| 20x20 | 20x25 | 20x30 | 20x35 | 20x40 | 20x45 | 20x50 | 20x55 | 20x60 |
| 25x25 | 25x30 | 25x35 | 25x40 | 25x45 | 25x50 | 25x55 | 25x60 | |
| 30x30 | 30x35 | 30x40 | 30x45 | 30x50 | 30x35 | 30x60 | ||
| 35x35 | 35x40 | 35x45 | 35x50 | 35x55 | 35x60 | |||
| 40x40 | 40x45 | 40x50 | 40x55 | 40x60 | ||||
| 45x45 | 45x50 | 45x55 | 45x60 | |||||
| 50x50 | 50x55 | 50x60 | ||||||
| 55x55 | 55x60 | |||||||
| 60x60 |
Other Adjustable panel for square column
Product Components
