Column Formwork

Products Categories
Featured Products

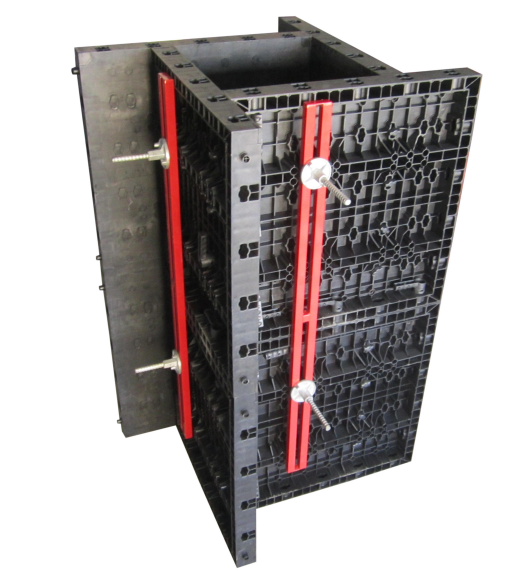

Adjustable Plastic square column formwork

1.Material:  ABS +Glassfiber

2.Weight:  15 KGS/SQM

3.Loading capacity:  60KN/SQM

4.Size: plastic formwork for square column:

height :750mm

width: 730mm

The panel 750*730mm is an adjustable panel for square column,it can make 45 sizes of columns.

    product features

    Transform your construction projects with our innovative square column formwork, designed for maximum efficiency and precision. This cutting-edge solution streamlines the process of creating robust, structurally sound columns, ensuring that every build meets the highest standards of quality and durability. Whether you’re working on residential buildings or commercial towers, our formwork offers unmatched reliability that stands up to the rigors of any construction environment.

    The square column formwork system offers a highly efficient and user-friendly solution for construction projects. Its lightweight design, made from ABS and glassfiber materials, ensures durability while remaining easy to handle and transport on-site. This portability significantly reduces manual labor and speeds up project timelines. The modular nature of the formwork allows for rapid assembly and disassembly, enabling workers to adapt quickly to various project requirements with minimal downtime.

    In addition to its structural reliability, the formwork system provides an excellent finish to concrete surfaces, minimizing or even eliminating the need for extensive post-construction refinishing. The smooth surface achieved with this system enhances the aesthetic appeal of the final structure and saves valuable resources in terms of labor and materials for finishing work.

    The formwork is engineered to offer adjustable configurations, making it capable of producing 45 different sizes of square columns. This flexibility allows for the seamless integration of columns into diverse architectural designs, catering to both standard and customized building specifications. As a result, construction professionals can achieve precise and aesthetically pleasing results with greater efficiency and lower costs, making it a valuable addition to any construction project.

    Product Parameters

    1. Material: ABS +Glassfiber
    2. Weight: 15 KGS/SQM
    3. Loading capacity: 60KN/SQM

    Product Size

    4.Size: plastic formwork for square column:
    height: 750mm
    width: 730mm
    The panel 750*730mm is an adjustable panel for square column,it can make 45 sizes of columns.size is as following:
    图片1kmr

    Dimension (cm)

    20 25 30 35 40 45 50 55 60
    20x20 20x25 20x30 20x35 20x40 20x45 20x50 20x55 20x60
    25x25 25x30 25x35 25x40 25x45 25x50 25x55 25x60
    30x30 30x35 30x40 30x45 30x50 30x35 30x60
    35x35 35x40 35x45 35x50 35x55 35x60
    40x40 40x45 40x50 40x55 40x60
    45x45 45x50 45x55 45x60
    50x50 50x55 50x60
    55x55 55x60
    60x60

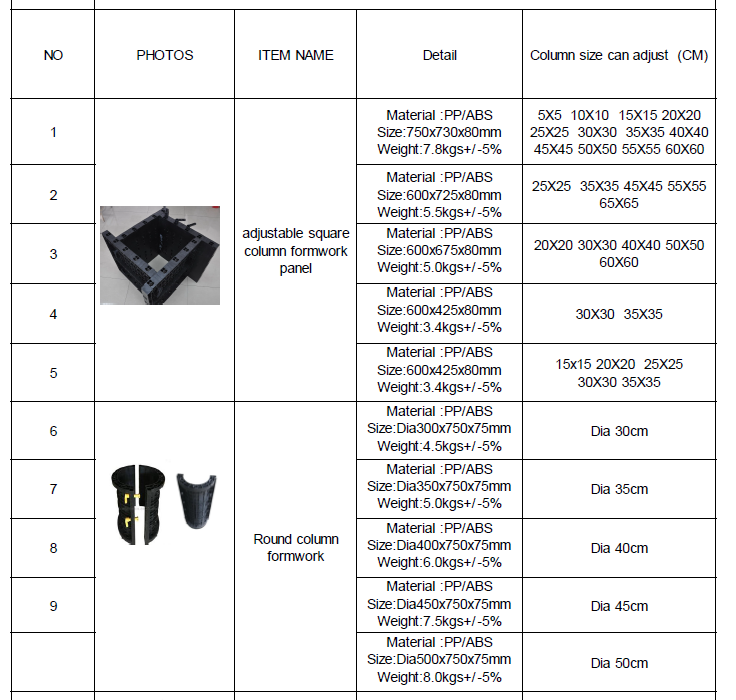

    Product Components

    图片2pmp
    图片3rh7
    图片4i44
    图片516m
    图片6k3l
